RIG 01 · THE RACK · 20RU

Open the rack.

A real Holley Video 12G routing + conversion rack. Scroll to take it apart.

  1. 01 Case closed
  2. 02 Power on
  3. 03 Open it up
  4. 04 Every device, labeled

SPEC SHEETS

Every rig, unit by unit.

The same systems as the 3D view, top to bottom. These are typical builds. Exact models and counts are confirmed on your quote, and any rig can be re-specced for the show.

RIG 01 · Road rack · 20RU IN THE CASE

12G routing + conversion rack

A real Holley Video 12G routing and conversion rack: two layers of 40×40 routing, standards conversion, 12G distribution, monitoring and conditioned power in one case.

  1. Blackmagic Audio Monitor 12G G3Embedded audio, on the rack1RU
  2. Videohub Smart Control ProHardware router control1RU
  3. Teranex AVStandards + format conversion1RU
  4. Teranex AVSecond conversion path1RU
  5. Blackmagic Videohub 40×40 12G40 in · 40 out · 12G-SDI2RU
  6. AC Infinity rack fanActive cooling1RU
  7. ATEM Monitoring Rack Panel 40Talkback + monitor control2RU
  8. Teranex Mini SDI Distribution 12G ×312G DAs on a rack shelf1RU
  9. Smart Videohub 12G 40×40Second routing layer2RU
  10. AC Infinity CLOUDPLATE T7Thermostat-controlled cooling2RU
  11. Computer shelfPlayback + engineering3RU
  12. Computer + network panelRemote power · switch1RU
  13. CyberPower power + PDUConditioned, metered power2RU

ON TOP

  • Lilliput RM1731S-12G17.3" 4K 12G-SDI pull-out monitor

RIG 02 · Case + control surfaces · 8RU IN THE CASE

2 M/E switcher flypack

Switcher, multiviewer and program/backup record in the case, with the switcher panel and camera control on top.

  1. ATEM 2 M/E Constellation 4KThe switcher: 2 M/E, 4K1RU
  2. Blackmagic MultiView 1616 sources on one screen1RU
  3. HyperDeck Studio 4K ProProgram record1RU
  4. HyperDeck Studio 4K ProBackup record1RU
  5. Teranex Mini SDI Distribution 12G ×3Program out to every screen1RU
  6. Blackmagic Audio Monitor 12G G3Hear the show1RU
  7. CyberPower power + PDUConditioned, metered power2RU

CONTROL SURFACES

  • ATEM 2 M/E Advanced Panel 20The switcher: cut, fade + key the show · 2 M/E rows · 20 sources a row · 4 LCD menus · joystick
  • ATEM Camera Control Panel · RCPShades four cameras live · Iris · black level · shutter · color, per camera

RIG 03 · Case + controllers · 7RU IN THE CASE

Record + playback rig

HD and 4K record/playback decks with the controllers that run replays, cues and clips.

  1. HyperDeck Studio HD Plus ×2Two HD decks on one shelf1RU
  2. HyperDeck Studio 4K Pro4K record + playback1RU
  3. HyperDeck Studio 4K ProSecond 4K channel1RU
  4. Teranex Mini SDI Distribution 12G ×3Feeds in, feeds out1RU
  5. Blackmagic Audio Monitor 12G G3Check every clip1RU
  6. CyberPower power + PDUConditioned, metered power2RU

CONTROL SURFACES

  • HyperDeck Extreme ControlRuns up to 8 HyperDecks · Replays · cues · clip lists · jog + shuttle
  • HyperDeck Shuttle HDInstant clip playback · Jog wheel · one-touch record + play

RIG 04 · Road rack · 15RU IN THE CASE

IP transport + fiber rig

Bitfire engines for live IP transport, routing to every engine, scopes, return monitoring and single-mode fiber panels.

  1. Blackmagic SmartScope Duo 4KWaveform + vectorscope on every feed · Checks the signal before it leaves3RU
  2. Bitfire EngineEncodes a live feed for the internet · Video, audio + data together1RU
  3. Bitfire EngineSecond path out · Frame-accurate sync with the first1RU
  4. Bitfire EngineReturn feed back to the venue · Program + comms home1RU
  5. Blackmagic Videohub 40×40 12GAny feed to any engine2RU
  6. Fiber panel · 12 portsSingle-mode to the truck and stage1RU
  7. Fiber panel · 12 portsSecond fiber trunk1RU
  8. Blackmagic SmartView DuoSee what goes out, see what comes back3RU
  9. CyberPower power + PDUConditioned, metered power2RU

RIG 05 · Rack + cameras + controllers · 6RU IN THE CASE

Robotic PTZ camera rig

Panasonic robotic cameras and controllers, with the rack that monitors, distributes and records them.

  1. Blackmagic MultiView 16Every camera on one screen1RU
  2. Teranex Mini SDI Distribution 12G ×3Camera feeds out to switcher + record1RU
  3. HyperDeck Studio 4K ProISO record of the wide shot1RU
  4. Camera control networkIP control to every head1RU
  5. CyberPower power + PDUPowers the cameras over the run2RU

CAMERAS + CONTROLLERS

  • Panasonic AW-HE130Full HD 3MOS · three sensors, broadcast color · 20× optical zoom · f/1.6 · 4.5–90 mm
  • Panasonic AW-UE1504K 60p · 1-type MOS sensor · 20× optical zoom · 12G-SDI, fiber + IP out
  • Panasonic AW-HE130Pan ±175° · tilt −30° to 210° · Smooth from 0.08° to 60° a second
  • Panasonic AW-RP150Remote camera controller · 7-inch touchscreen · joystick with zoom rocker
  • Panasonic AW-RP120Remote camera controller · Pan, tilt, zoom, focus + iris for every head

THE REAL THING

Racks in the wild.

01 / 00
BURBANK SHOPBuilt and tested before they ship
A rack full of red Bitfire IP video engines with a Holley Video sticker
IP TRANSPORTBitfire engines, racked and labeled
Road racks on site with Bitfire engines, routing and a pull-out monitor
ON SITEBitfire, routing and scopes in the field

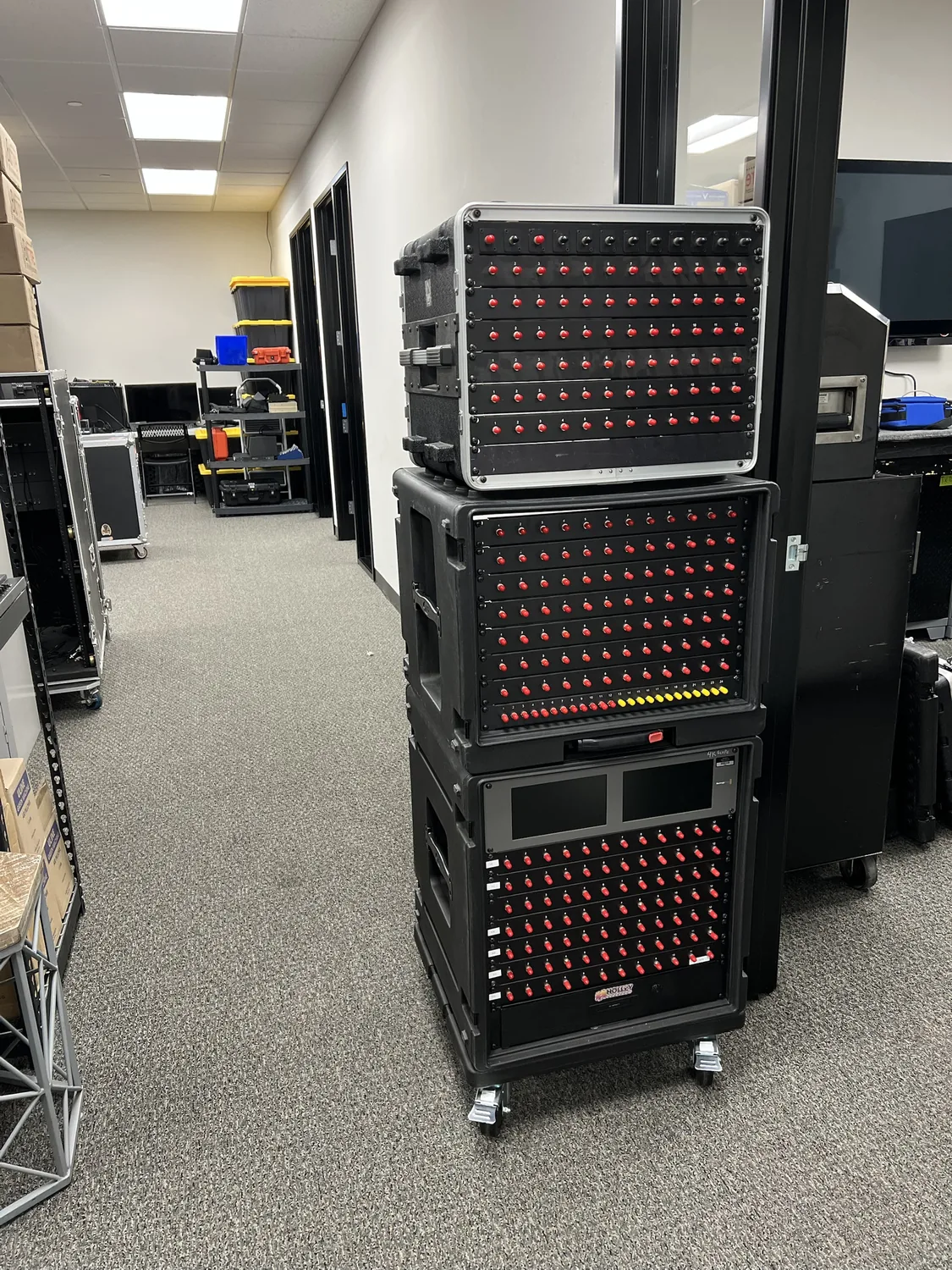

Three stacked road cases of fiber and SDI patch panels in the shop
FIBER + PATCHPatch panels, cased for the road
A remote control room with walls of multiview monitors lit blue and magenta
CONTROL ROOMFestival feeds on the multiview wall

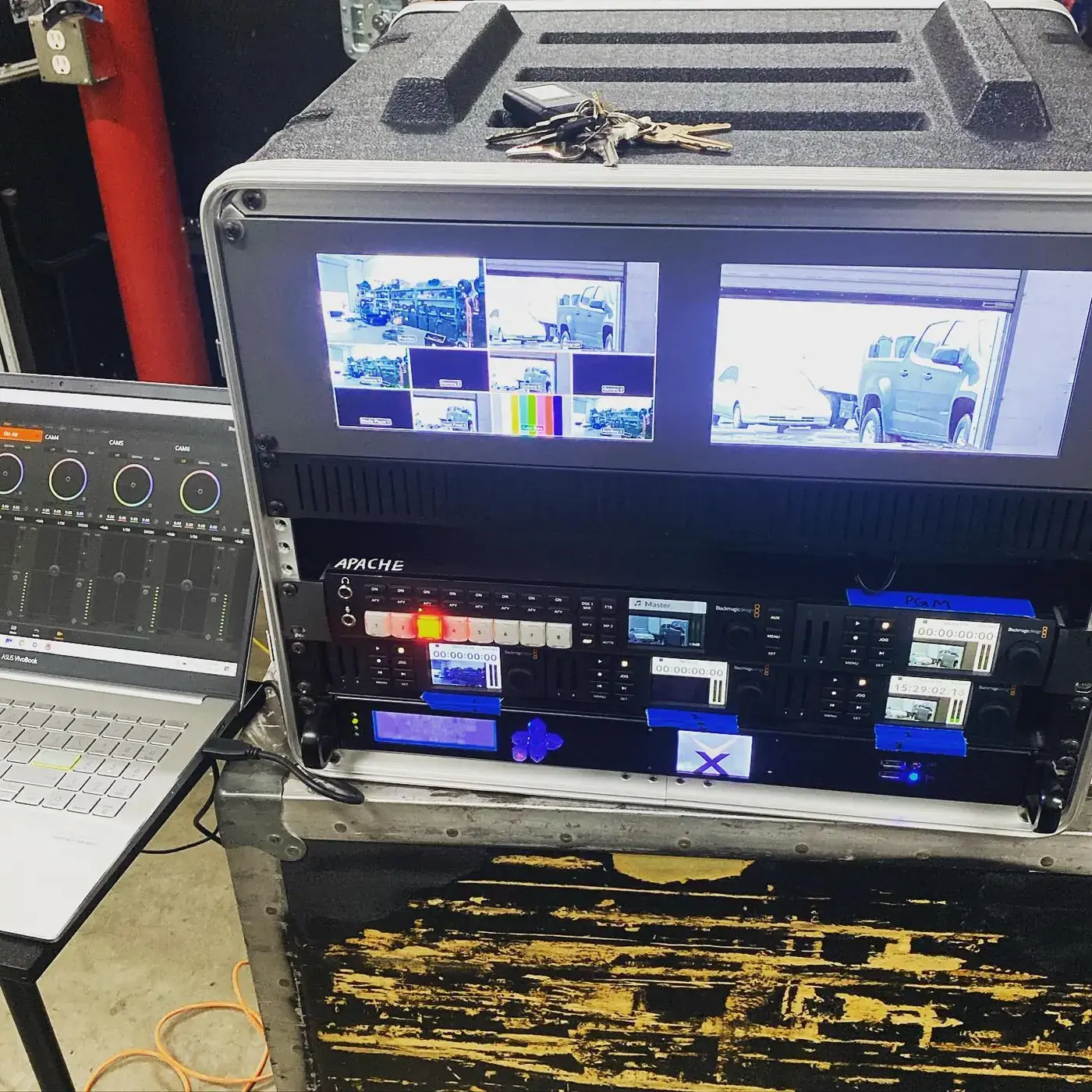

Holley Video record rack
RECORDRecord rack, ready to roll

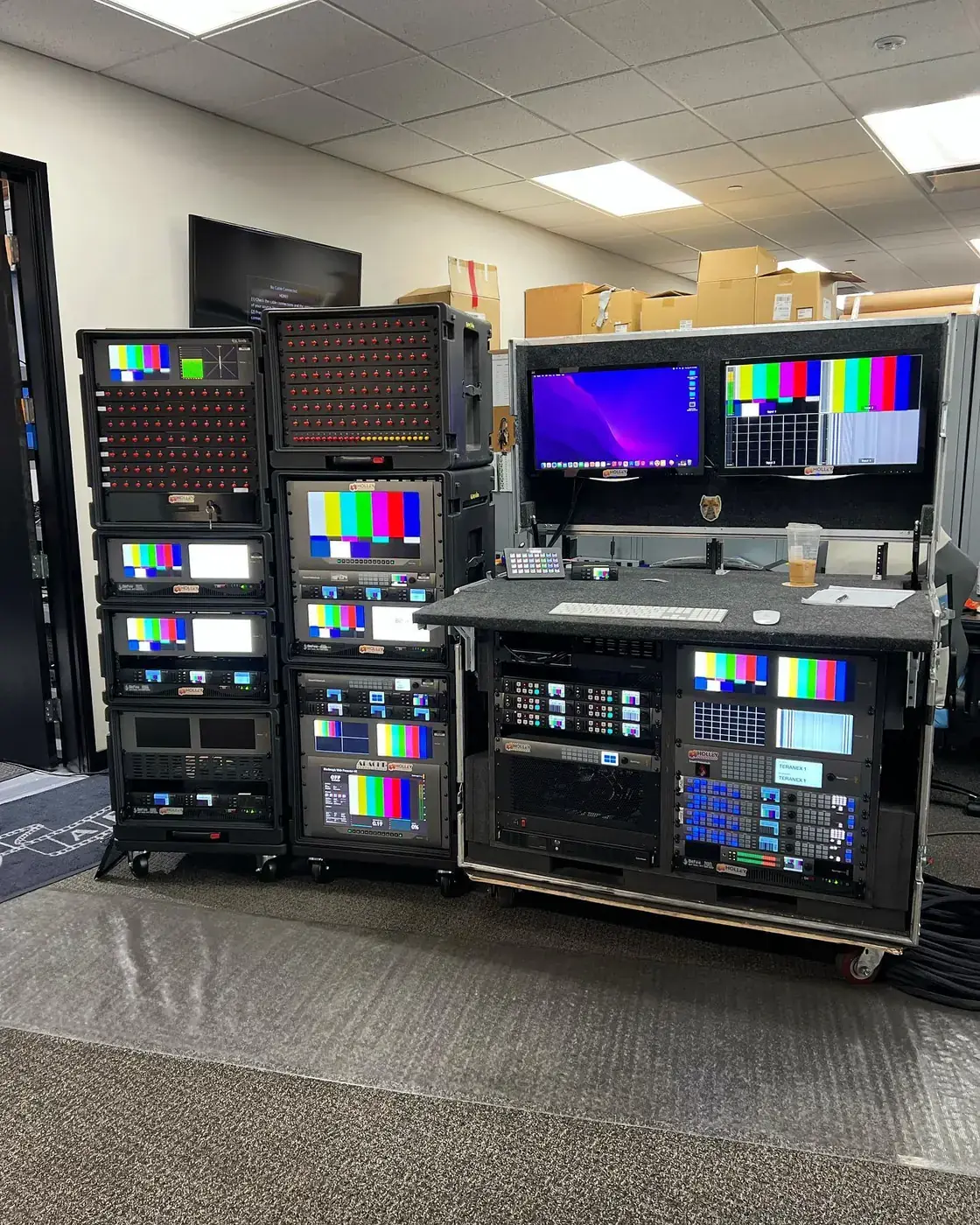

Holley Video distribution racks lit up in the shop
DISTRIBUTIONDistro racks, powered up

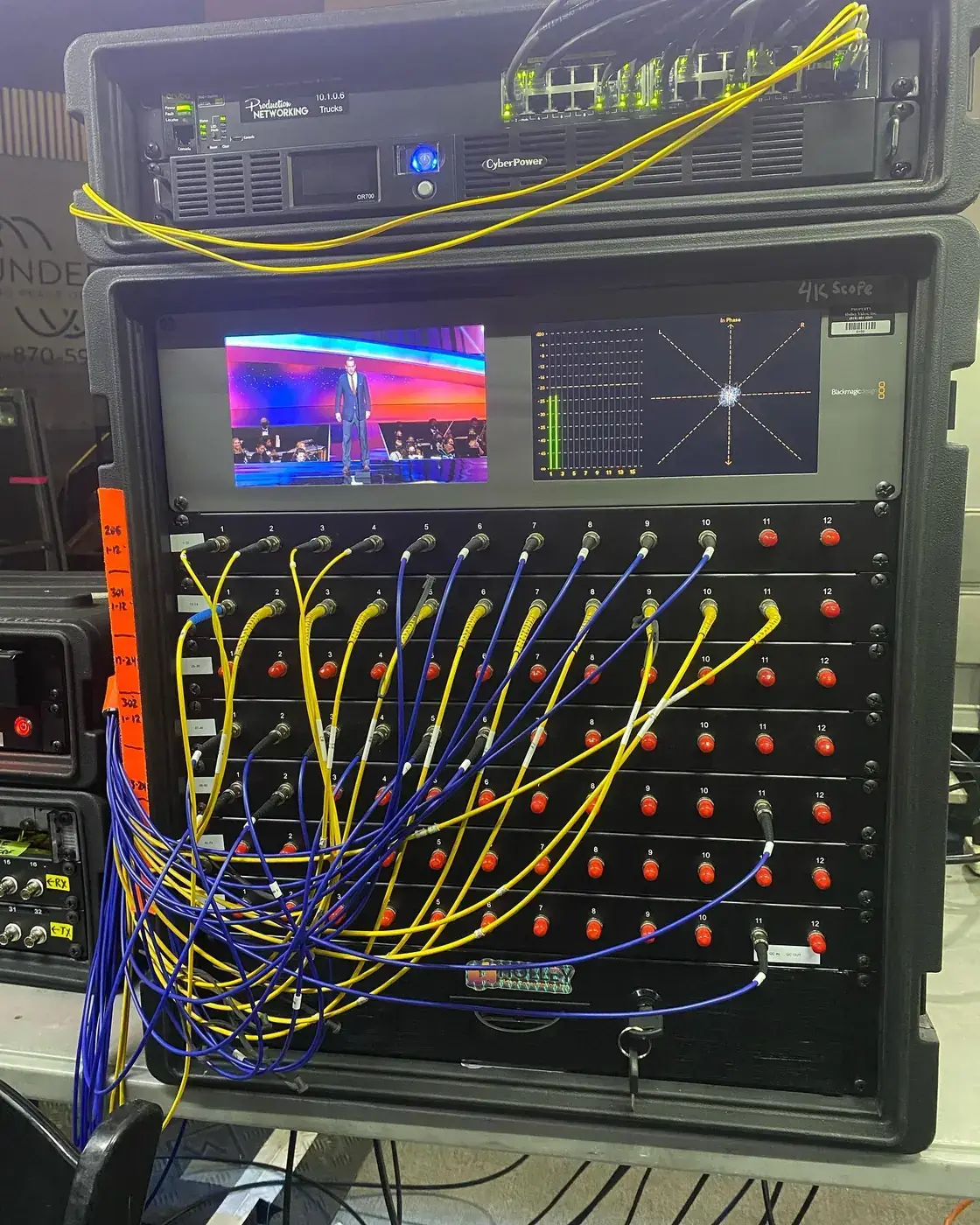

Fiber distribution rack with yellow single-mode patching
FIBERSingle-mode, patched clean

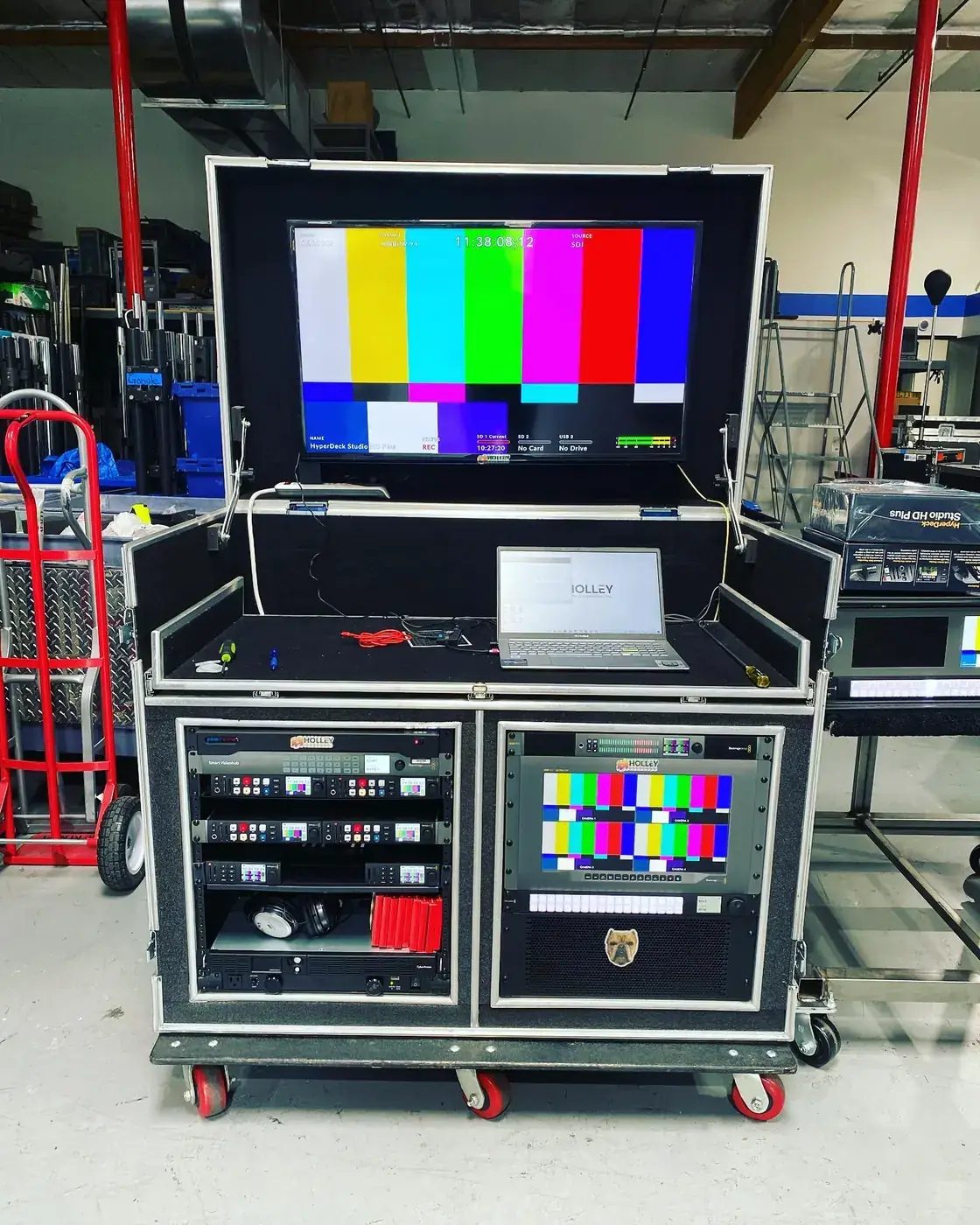

Holley Video video assist rack
MONITORINGVideo assist rack
